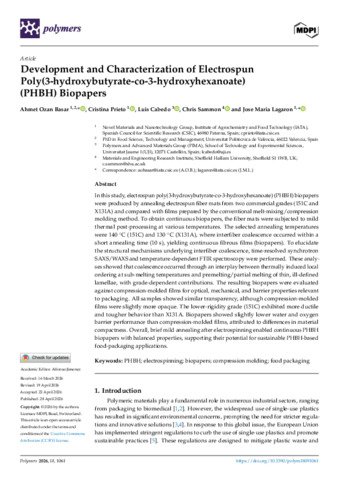

Development and Characterization of Electrospun Poly(3-hydroxybutyrate-co-3-hydroxyhexanoate) (PHBH) Biopapers

In this study, electrospun poly(3-hydroxybutyrate-co-3-hydroxyhexanoate) (PHBH) biopapers were produced by annealing electrospun fiber mats from two commercial grades (151C and X131A) and compared with films prepared by the conventional melt-mixing/compression molding method. To obtain continuous biopapers, the fiber mats were subjected to mild thermal post-processing at various temperatures. The selected annealing temperatures were 140 °C (151C) and 130 °C (X131A), where interfiber coalescence occurred within a short annealing time (10 s), yielding continuous fibrous films (biopapers). To elucidate the structural mechanisms underlying interfiber coalescence, time-resolved synchrotron SAXS/WAXS and temperature-dependent FTIR spectroscopy were performed. These analyses showed that coalescence occurred through an interplay between thermally induced local ordering at sub-melting temperatures and premelting/partial melting of thin, ill-defined lamellae, with grade-dependent contributions. The resulting biopapers were evaluated against compression-molded films for optical, mechanical, and barrier properties relevant to packaging. All samples showed similar transparency, although compression-molded films were slightly more opaque. The lower-rigidity grade (151C) exhibited more ductile and tougher behavior than X131A. Biopapers showed slightly lower water and oxygen barrier performance than compression-molded films, attributed to differences in material compactness. Overall, brief mild annealing after electrospinning enabled continuous PHBH biopapers with balanced properties, supporting their potential for sustainable PHBH-based food-packaging applications.
